High-Performance Secondary Air Filtration for Cleanrooms and Critical Environments
Cleanroom medium efficiency air filters are designed as the secondary filtration stage in HVAC and air handling unit (AHU) systems. Installed downstream of pre-filters and upstream of HEPA filters, they remove fine airborne particles while reducing the particle load on final-stage filters.
By combining high dust holding capacity, stable airflow, and low operating resistance, medium efficiency filters help maintain consistent cleanroom performance, extend HEPA filter service life, and improve the overall energy efficiency of air handling systems.

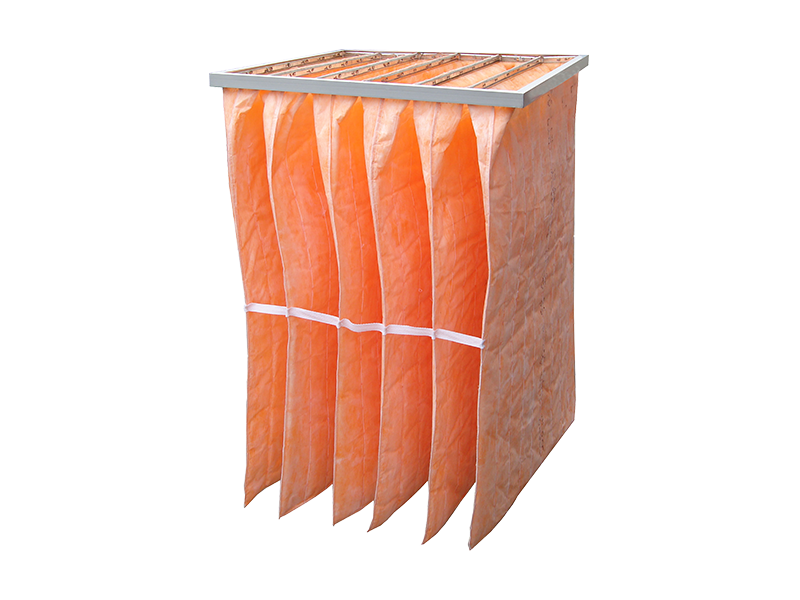

Available in bag (pocket) filters, rigid box filters, and compact filters, these products are widely used in pharmaceutical manufacturing, semiconductor fabrication, hospitals, laboratories, food processing, and other controlled environments.
Why Are Medium Efficiency Filters Important in Cleanroom HVAC Systems?A multi-stage air filtration system is essential for maintaining stable cleanroom performance.Without effective secondary filtration, fine airborne particles can rapidly increase the loading of HEPA filters, resulting in:
Shorter HEPA filter service life
Higher maintenance costs
Increased HVAC operating pressure
Reduced airflow stability
Greater risk of cleanroom contamination
Medium efficiency filters capture fine particles before they reach high-efficiency filtration stages, providing an effective balance between filtration performance and energy consumption.
Key Features & Benefits
High Dust Holding Capacity
Optimized filter media and pocket design provide a large effective filtration area, enabling the filter to retain more airborne particles while maintaining stable airflow.
Benefits include:
Filter media is engineered to provide efficient particle removal while maintaining relatively low airflow resistance.
Lower pressure drop helps:
Reduce HVAC fan energy consumption
Improve airflow consistency
Maintain stable cleanroom pressure balance
Actual pressure drop depends on airflow velocity, filter dimensions, and operating conditions.
Reliable Protection for HEPA Filters
Medium efficiency filters serve as an important barrier before final-stage HEPA filtration.
By removing fine dust particles, they help:
Extend HEPA filter service life
Reduce replacement frequency
Improve overall filtration system reliability
Multiple Structural Options
Different configurations are available for various HVAC systems and installation requirements.
Available products include:
Custom dimensions and frame materials are available for OEM and replacement applications.
Durable Filter Media
Filter media options include high-quality synthetic fibers and glass fiber materials selected according to application requirements.
Optional features include:
Material selection should be based on system design and environmental requirements.
Typical Applications
Medium efficiency filters are widely used in cleanroom HVAC systems requiring stable air quality and reliable protection of downstream HEPA filters.
1. Pharmaceutical Manufacturing
Used in GMP cleanrooms and pharmaceutical production facilities to support controlled air quality before terminal HEPA filtration.
2. Semiconductor & Electronics Manufacturing
Provides secondary filtration for semiconductor fabrication plants, electronics assembly, and precision manufacturing environments where airborne particle control is critical.
3. Healthcare Facilities
Suitable for hospitals, operating theatres, laboratories, diagnostic centers, and other healthcare ventilation systems.
4. Food & Beverage Processing
Supports hygienic production areas by reducing airborne particles before final filtration stages.
5. Commercial & Industrial HVAC Systems
Provides efficient secondary filtration for office buildings, commercial facilities, airports, and industrial ventilation systems.
Technical Specifications
| Parameter | Specification |
| Filter Type | Pocket Filter / Rigid Box Filter / Compact Filter |
| Typical Filter Class | M5, M6, F7, F8, F9 (EN 779) |
| ISO 16890 Classification | ePM10 / ePM2.5 / ePM1 (depending on filter grade) |
| Filter Media | Synthetic Fiber / Glass Fiber |
| Frame Material | Galvanized Steel, Aluminum, Plastic, Stainless Steel |
| Operating Temperature | According to media selection |
| Application | AHU, HVAC, Cleanroom Ventilation Systems |
| Custom Sizes | Available |
Filter classification and performance depend on the selected filter media and applicable testing standards.
Selection Guide
| Application Recommended | Filter Grade Typical Purpose |
| Pharmaceutical Cleanrooms | F7–F9 HEPA pre-filtration |
| Semiconductor Facilities | F8–F9 Fine particle control |
| Hospital HVAC Systems | F7–F9 Secondary air filtration |
| Food Processing Plants | F7 Hygienic ventilation |
| Commercial Buildings | M5–F7 General HVAC filtration |
Final filter selection should consider required cleanliness level, airflow rate, pressure drop, and equipment design.
Why Choose Our Medium Efficiency Air Filters?
Our medium efficiency filters are designed to deliver reliable performance in demanding HVAC applications.
Key advantages include:
Stable filtration efficiency
High dust holding capacity
Low operating resistance
Multiple structural configurations
OEM replacement and custom manufacturing
Compatible with a wide range of air handling units
Our engineering team also provides customized filtration solutions for pharmaceutical, semiconductor, healthcare, food processing, and industrial cleanroom applications.
Frequently Asked Questions
1. What is the difference between medium efficiency filters and HEPA filters?
Medium efficiency filters are used as intermediate filters to remove fine airborne particles before HEPA filtration. HEPA filters provide final-stage filtration for submicron particles and are typically installed downstream in cleanroom HVAC systems.
2. Which filter grade should I choose: F7, F8 or F9?
The appropriate filter grade depends on the cleanliness requirements, HVAC system design, and downstream filtration configuration.
F7: General secondary filtration for commercial and industrial HVAC systems.
F8: Enhanced fine particle removal for healthcare and controlled environments.
F9: Recommended for critical cleanroom applications requiring maximum protection of HEPA filters.
3. How often should medium efficiency filters be replaced?
Replacement should be based on differential pressure, airflow performance, and the HVAC system manufacturer's maintenance recommendations rather than a fixed service interval.
Regular inspection and pressure monitoring are recommended to optimize filter life and system performance.
4.Can the filters be customized?
Yes. We offer customized dimensions, filter grades, frame materials, filter media, and gasket configurations to meet OEM equipment requirements and specific HVAC system designs.
