Reliable First-Stage Air Filtration for Cleanrooms and Controlled Environments
Cleanroom pre-filters are designed to remove coarse airborne particles before air reaches fine filters and HEPA filters in HVAC and air handling systems. As the first stage of multi-stage air filtration, they help reduce dust loading, protect downstream filters, improve indoor air quality, and extend the service life of high-efficiency filtration systems.
Available in panel filters, pocket filters and metal mesh filters, these pre-filters are widely used in pharmaceutical manufacturing, semiconductor fabrication, medical facilities, food processing plants, laboratories and other controlled environments where consistent air cleanliness is required.
Whether installed in new air handling units (AHUs) or existing HVAC systems, cleanroom pre-filters provide reliable protection while supporting energy-efficient operation.
Why Use Pre-Filters in Cleanroom HVAC Systems?
Air entering a cleanroom typically contains dust, fibers, pollen and other coarse particles. Without effective pre-filtration, these contaminants rapidly increase the loading on fine filters and HEPA filters, resulting in:
1. Higher operating pressure drop
2. Increased energy consumption
3. Shorter HEPA filter service life
4. More frequent maintenance
5. Reduced HVAC performance
Installing an appropriate G3 or G4 pre-filter helps remove larger airborne particles before they reach downstream filtration stages, improving the overall efficiency and stability of the air handling system.
Key Features & Benefits
Optimized media configuration provides effective particle capture while maintaining low initial resistance. Lower pressure drop reduces fan energy consumption and supports stable airflow throughout the HVAC system.
Designed as the first filtration stage, pre-filters capture coarse particles before they enter high-efficiency filtration sections. This reduces contamination of downstream filters and helps extend maintenance intervals.
Different filter structures are available to suit various air handling units and installation requirements.

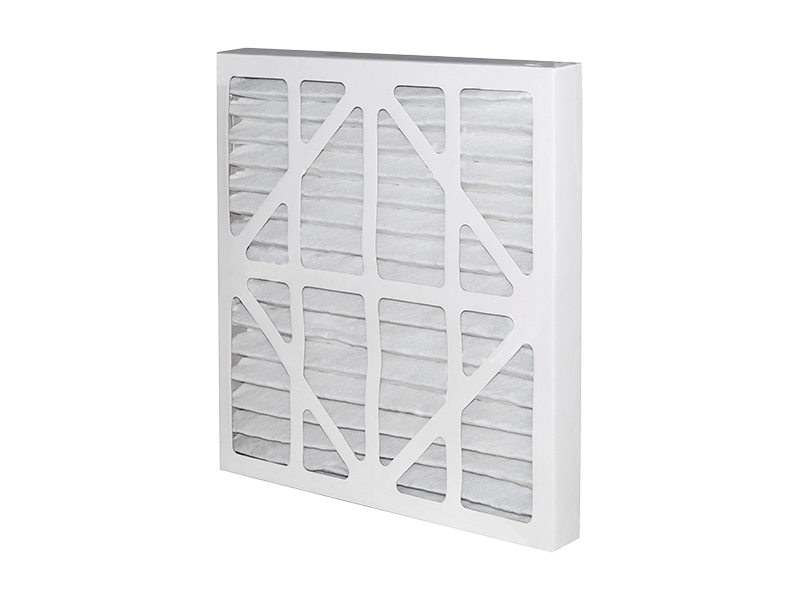

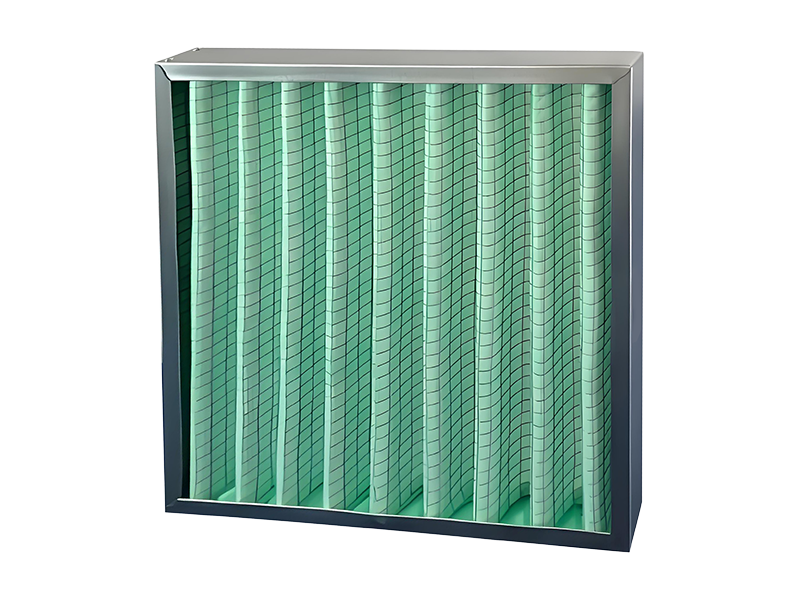

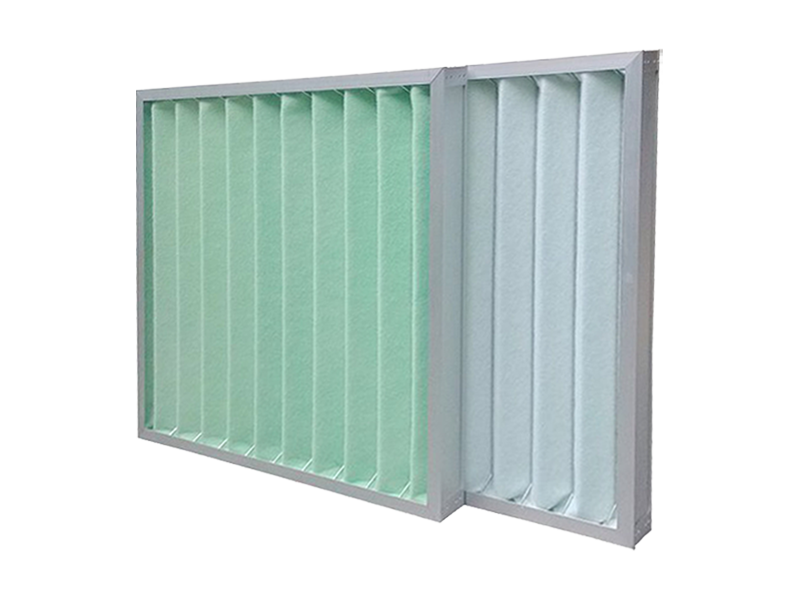

1. Panel pre-filters

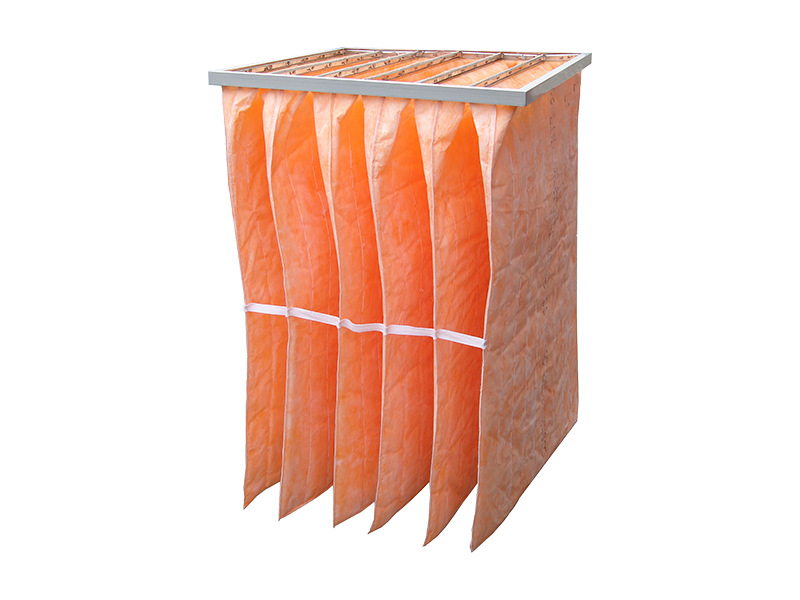

2. Pocket (bag) filters

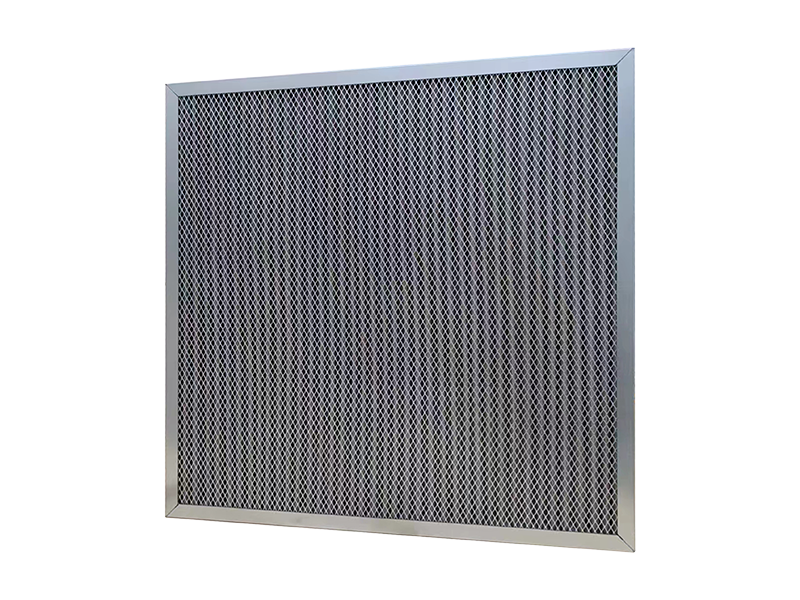

3. Metal mesh washable filters
4. Aluminum frame filters
5. Galvanized steel frame filters
6. Custom sizes and frame materials are available for OEM and replacement applications.
Filter media can be selected according to application requirements, including:
1. Synthetic fiber media
2. Washable metal mesh
3. Glass fiber media
4. Flame-retardant media (optional)
Material selection can be optimized for humidity, operating environment, airflow and maintenance requirements.
Typical Applications
Cleanroom pre-filters are suitable for a wide range of HVAC systems and controlled environments.
1.Pharmaceutical Manufacturing
Protects downstream HEPA filters in GMP production areas and clean manufacturing facilities.
2.Semiconductor & Electronics
Helps maintain stable air quality in semiconductor fabrication plants, electronic assembly lines and precision manufacturing workshops.
3.Healthcare Facilities
Used in hospitals, laboratories, operating rooms and medical HVAC systems requiring reliable air filtration.
4.Food & Beverage Processing
Supports hygienic production environments by reducing airborne dust before final filtration stages.
5.Industrial Cleanrooms
Provides first-stage filtration for dust-controlled production areas across various manufacturing industries.
Technical Specifications
Parameter | Specification |
Filter Type | Panel Filter / Pocket Filter / Metal Mesh Filter |
Filter Class | G3 / G4 (EN 779) |
Frame Material | Aluminum, Galvanized Steel, Cardboard, Stainless Steel |
Filter Media | Synthetic Fiber, Glass Fiber, Metal Mesh |
Recommended Application | HVAC, AHU, Cleanroom Ventilation Systems |
Custom Sizes | Available |
Actual filtration performance depends on filter media, airflow rate and operating conditions.
Selection Guide
Application | Recommended Filter | Typical Purpose |
Hospital HVAC | G4 Pocket Filter | Protect downstream HEPA filters |
GMP Pharmaceutical Facility | G4 Panel Filter | Cleanroom pre-filtration |
Semiconductor Cleanroom | G3/G4 Panel Filter | Stable airflow and particle control |
Food Processing Plant | G4 Pocket Filter | General clean air protection |
Commercial AHU | G3 Panel Filter | Primary air filtration |
Why Choose Our Cleanroom Pre-Filters?
Our cleanroom pre-filters are engineered for reliable operation in demanding HVAC applications.
Key advantages include:
1. Low pressure drop design
2. Stable airflow performance
3. High dust holding capacity
4. Multiple frame and media options
5. OEM and custom manufacturing support
6. Compatible with a wide range of air handling units
Our engineering team also provides customized filtration solutions for cleanrooms, pharmaceutical facilities, semiconductor manufacturing and industrial ventilation systems.
Frequently Asked Questions
1. What is the difference between G3 and G4 pre-filters?
Both are coarse air filters used as the first stage of HVAC filtration. G4 filters generally provide higher particle capture efficiency than G3 filters and are commonly selected for cleanroom and pharmaceutical HVAC systems.
2. When should a cleanroom pre-filter be replaced?
Replacement is typically based on differential pressure rather than operating time. Filters should be replaced when the pressure drop reaches the system manufacturer's recommended limit or when airflow performance begins to decrease.
3. Should I choose a panel filter or a pocket filter?
Panel filters are suitable for compact AHUs and applications with moderate dust loading. Pocket filters provide a larger filtration area, higher dust holding capacity and are often preferred for systems with higher airflow or longer maintenance intervals.
4. Can the filters be customized?
Yes. We offer customized dimensions, frame materials, filter media, efficiency grades and gasket configurations for OEM equipment manufacturers and industrial HVAC applications.
