High-Temperature Filter Cartridge with Threaded Connection
High-Temperature Filtration for Metal Additive Manufacturing
Our High-Temperature Filter Cartridges with Threaded Connections are engineered for demanding filtration applications in metal additive manufacturing, metal 3D printing, and high-temperature industrial processes.

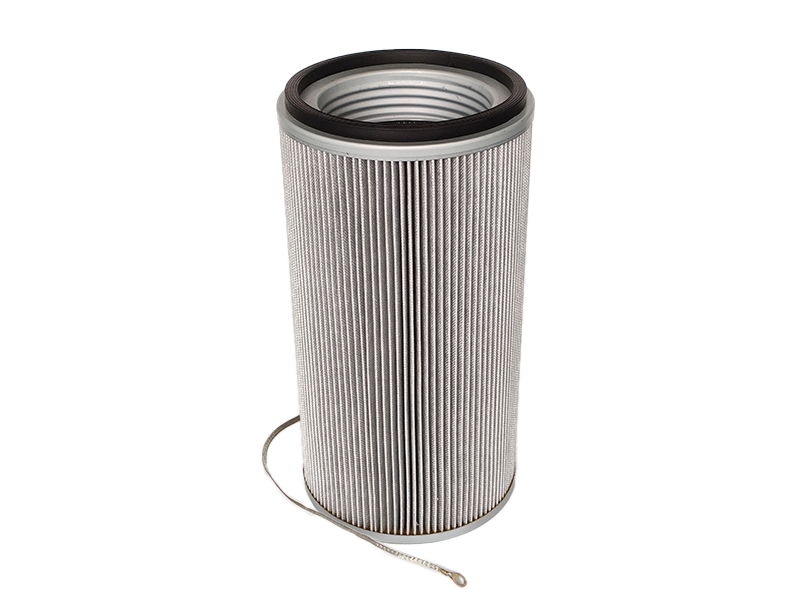

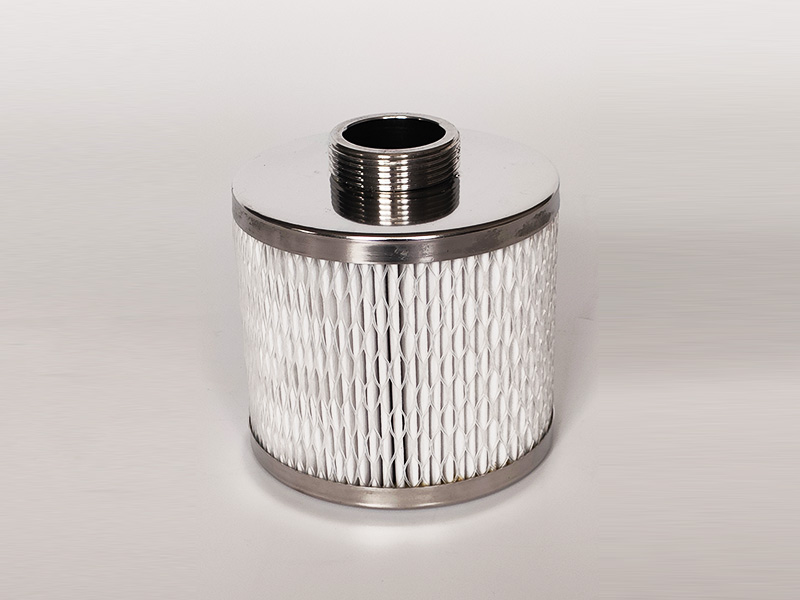

Featuring an internal or external threaded connection, the filter cartridge can be directly installed into a matching threaded port within the equipment filter chamber. The compact screw-in design provides a secure mechanical connection, reliable sealing, and good resistance to vibration and thermal cycling.
Typical applications include SLM systems, EBM electron beam systems, and customized metal additive manufacturing equipment requiring high-temperature resistance, reliable filtration, and robust mechanical construction.
Depending on the application, the filter can be manufactured with ceramic fiber or sintered metal filter media, combined with stainless steel, Inconel, and other application-specific components. High-temperature sealing solutions are also available for demanding operating conditions.
Designed for High-Temperature Metal AM Applications
High-temperature filter cartridges are used where conventional filter elements may not provide sufficient thermal resistance, mechanical stability, or process compatibility.
Typical applications include:
Metal Additive Manufacturing
Metal 3D Printing
SLM / LPBF systems
EBM electron beam systems
High-temperature exhaust filtration
Process gas filtration
High-temperature powder processing
Customized AM equipment
Industrial high-temperature extraction systems
Filter design is based on the actual operating conditions, including temperature, airflow, particle loading, gas composition, pressure drop, and installation configuration.

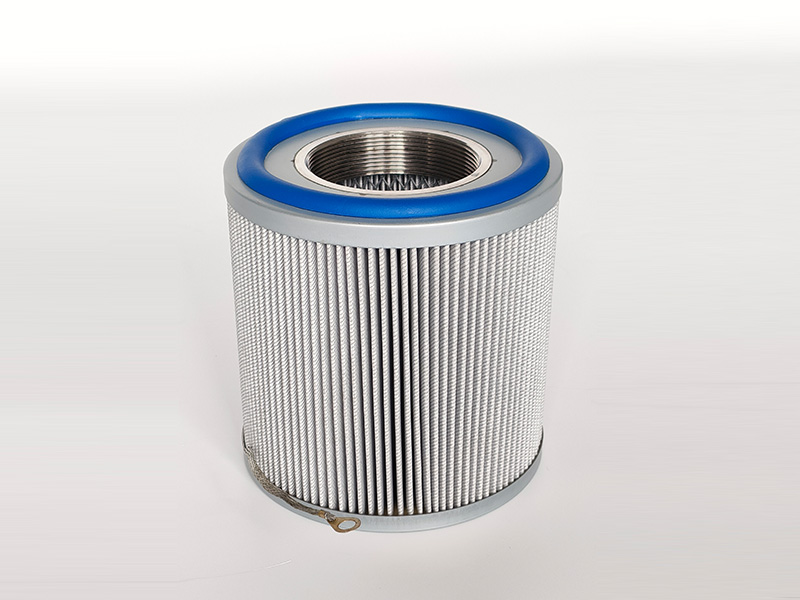

Threaded Connection for Secure Installation
The filter cartridge can be configured with either an internal or external thread to match the equipment interface.
The threaded design provides:
Secure mechanical fixation
Compact installation
Good vibration resistance
Flexible sealing options
Easy integration into existing filter chambers
Convenient removal for maintenance and filter replacement
For high-temperature applications, a suitable high-temperature anti-seize compound can be applied during installation. Thread material, sealing method, tightening torque, and thermal expansion should be considered when selecting the connection design.
High-Temperature Filter Media
Different filter media can be selected according to the application requirements.
Ceramic Fiber Filter Media
Ceramic fiber filter media offer high-temperature resistance with relatively low weight. They are suitable for applications where thermal resistance and lightweight construction are important design considerations.
Sintered Metal Filter Media
Sintered metal filter media provide high mechanical strength and can be designed for applications involving repeated cleaning or regeneration.
They are particularly suitable where the filter requires:
High mechanical strength
High-temperature resistance
Good cleanability
Regeneration capability
Long service life
The final filter media should be selected according to the actual operating temperature, particle characteristics, pressure drop, chemical environment, cleaning method, and required service life.
High-Temperature Sealing Solutions
Different sealing concepts are available depending on the equipment interface and operating conditions:
Tapered threaded connections
High-temperature metal sealing gaskets
Graphite sealing rings
Customized sealing solutions
The appropriate sealing method depends on temperature, pressure, gas composition, thread design, and thermal expansion.
For high-temperature applications, metallic or graphite sealing solutions can be considered where conventional elastomer seals are unsuitable.
Materials and Construction
The filter cartridge can be customized using different materials and construction configurations.
Component Available Options
Filter Media Ceramic Fiber / Sintered Metal
Filter Housing Stainless Steel / Customized Alloys
Support Structure Stainless Steel / High-Temperature Alloys
End Caps Stainless Steel / Inconel
Sealing Metal / Graphite / Customized
Connection Internal Thread / External Thread
Construction Standard / Customized
Note: Actual temperature resistance depends on the specific material grade, component design, sealing system, and operating conditions.
Filtration for SLM and EBM Systems
SLM / LPBF Metal Additive Manufacturing
For SLM and LPBF systems, the filter cartridge can be configured for the filtration of fine metal particles, residual powder, and process-generated particulate contaminants in temperature-sensitive or high-temperature areas.
Filter media, filtration area, connection design, and sealing materials can be customized according to the equipment configuration.
EBM Electron Beam Melting
EBM processes can present specific requirements for filter materials, mechanical construction, and process compatibility.
Depending on the process gas, operating temperature, particle loading, and equipment configuration, ceramic fiber or sintered metal filter media can be considered.
High-Temperature Process Materials
Potential applications include processes involving:
Tungsten
Molybdenum
Tantalum
Refractory metal alloys
High-temperature metal powders
Ceramic materials
Filter suitability should be evaluated based on the actual process parameters, operating atmosphere, material characteristics, and equipment design.
Customized High-Temperature Filter Solutions
Custom Filter Design & Replacement Development
Different metal AM systems require different filter dimensions, connection configurations, filter media, and sealing solutions.
We provide customized filter development covering:
Filter diameter
Filter length
Internal or external thread
Filter media
Filtration area
Filtration grade
Support structure
End-cap design
Gasket and sealing system
Material selection
Mounting configuration
Anti-static construction
High-temperature construction
For replacement applications, customers can provide an existing filter, technical drawing, dimensions, equipment information, or original filter specifications.
Our engineering team can evaluate the existing design and develop a compatible replacement filter according to the application requirements.
Filtration Efficiency & Testing
Filtration performance is defined according to the requirements of the specific application.
Depending on customer requirements, inspection and testing can include:
Dimensional inspection
Filter media inspection
Airflow testing
Pressure-drop testing
Filtration efficiency testing
Leak testing
Material inspection
Batch traceability
Where required and properly validated, H13 or H14 filtration performance according to EN 1822 can be specified for the applicable filter configuration and test conditions.
Specific filtration performance should always be confirmed according to the actual filter design, test method, and operating conditions.
FAQ – High-Temperature Filter Cartridges
What is a high-temperature filter cartridge for metal 3D printing?
A high-temperature filter cartridge is a filter element designed to remove particulate contaminants from exhaust or process air under elevated-temperature conditions. In metal additive manufacturing, it can be used for applications involving fine metal particles, process fumes, residual powder, and high-temperature exhaust.
What type of filter is suitable for SLM systems?
The appropriate filter depends on the SLM equipment configuration, operating temperature, airflow, particle loading, filtration requirements, and connection design.
Ceramic fiber and sintered metal filter media can both be considered for high-temperature SLM applications, depending on the specific process conditions.
What filter media are suitable for high-temperature metal AM?
Ceramic fiber and sintered metal are two common options for demanding high-temperature applications.
Ceramic fiber is suitable where high-temperature resistance and lightweight construction are important. Sintered metal provides high mechanical strength and can be suitable for applications requiring repeated cleaning or regeneration.
How can thread seizure be prevented at high temperatures?
A suitable high-temperature anti-seize compound, such as a nickel-based anti-seize compound, can be applied during installation.
Thread material compatibility, tightening torque, thermal expansion, and maintenance procedures should also be considered. Excessive tightening should be avoided.
How should 316L stainless steel and Inconel be selected?
Material selection depends on the actual operating temperature, atmosphere, corrosion conditions, mechanical loading, and thermal cycling.
316L stainless steel can be suitable for many industrial high-temperature applications, while Inconel nickel-based alloys can be considered for applications requiring higher temperature and oxidation resistance.
The allowable operating temperature should be determined based on the specific alloy grade, component design, and validated application conditions.
How is the sealing performance of a threaded filter cartridge tested?
Depending on the application, helium mass spectrometer leak testing, pressure decay testing, or other suitable leak-testing methods can be used.
For high-temperature applications, testing can initially be performed at room temperature, followed by thermal testing under representative operating conditions where required. This helps evaluate sealing performance after thermal expansion and repeated thermal cycling.
High-Temperature Filter Cartridge for Metal Additive Manufacturing
Threaded Connection · Ceramic Fiber & Sintered Metal Options · Customized Design · High-Temperature Filtration
Our high-temperature filter cartridges provide customizable filtration solutions for SLM, LPBF, EBM, metal 3D printing, and other demanding high-temperature industrial applications.
